Digital Voltmeter Ammeter-Detector Charger-Indicator Usb-Tester Power-Bank Current Amperimetro

    Digital Voltmeter Ammeter-Detector Charger-Indicator Usb-Tester Power-Bank Current Amperimetro Specification & Description Summary

    Digital Voltmeter Ammeter-Detector Charger-Indicator Usb-Tester Power-Bank Current Amperimetro Specification

    • Brand NameATORCH
    • OriginCN(Origin)
    • DIY SuppliesElectrical
    • Display TypeDigital Only

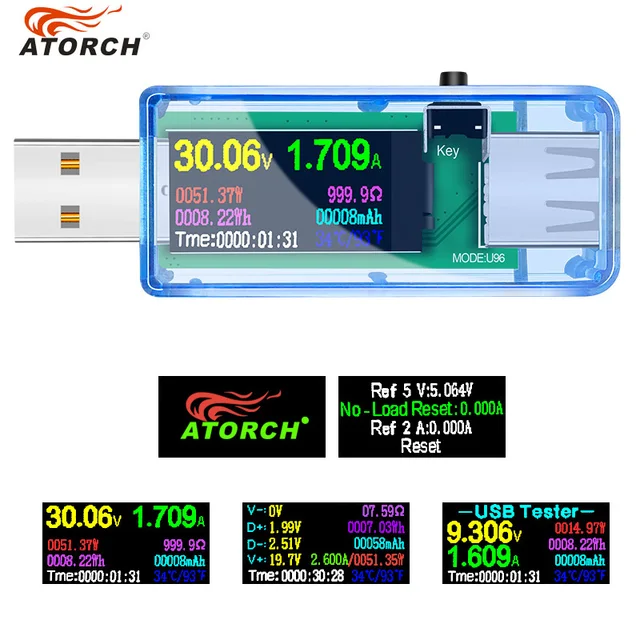

    U96

    IPS High-definition color display
    Low resistance fast charging
    1-6

    U96_02





    主图-1主图-21-11-2

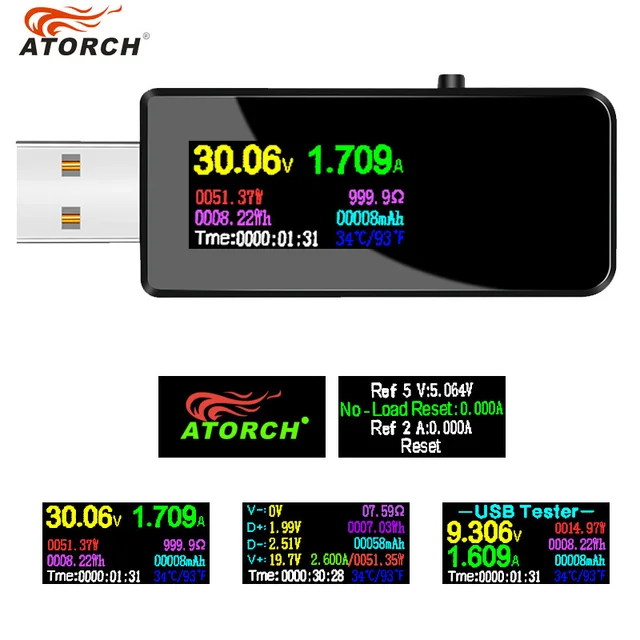

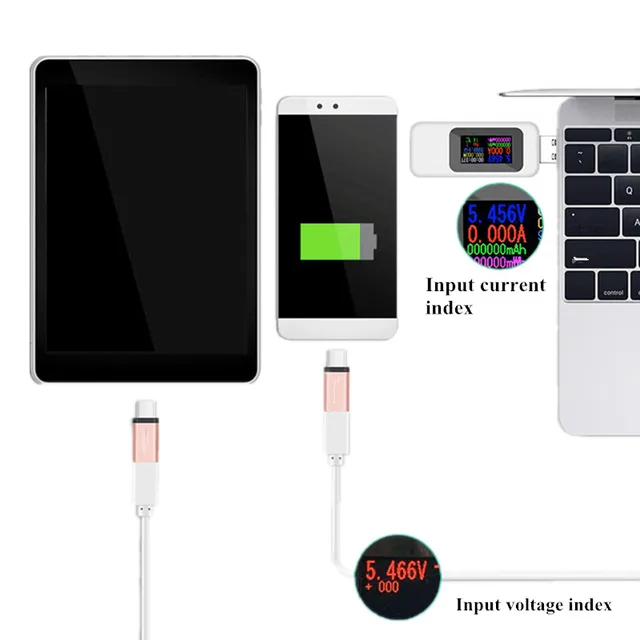

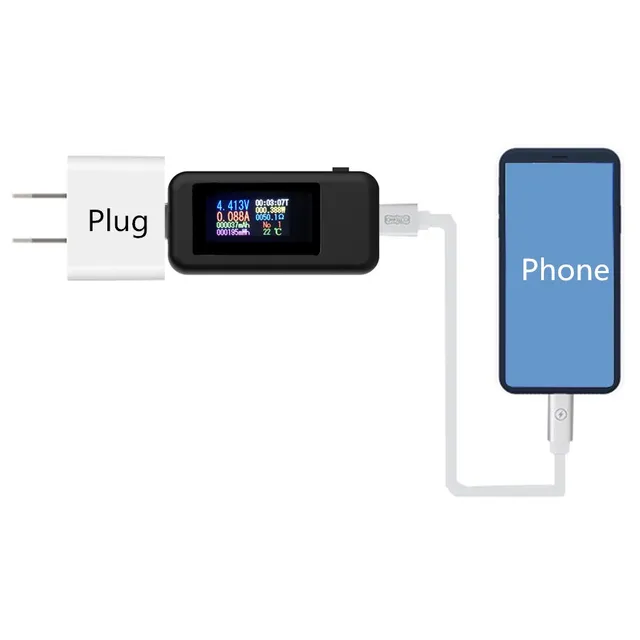

    U96 USB color tester can monitor the charging data of the mobile phone in real time, supporting QC3.0 (3.8~12V, -/+0.2 step) Support QC2.0 (5V9V12V20V), Android BC1.2 (5V), Apple 5V2.4A and MTK-PE (5V/7V/9V/12V) Wait for the fast charging voltage range to charge!



    U96 13 IN 1Technical parameters:

    Voltage measuring range:  3.60V ~ 32.5 V       Resolution precision: 0.01 V
    Current measuring range: 0.00A ~ 5.00 A        Resolution precision: 0.01 A
    Power cumulative range: 0 ~ 999999 WH      Resolution precision: 0.001 Wh
    Capacity range :      0 ~ 999999 mAH        Resolution precision: 0.001 Ah
    Temperature:0   ℃   ~ + 80 ℃            Resolution precision:1
    D+   Voltage  :     0.000V ~ 2.999 V     Resolution precision: 0.001 V
    D-   Voltage    0.000V ~ 2.999 V     Resolution precision: 0.001 V
    Load impedance: 0   ~ 999 ohm         Resolution precision:     1 ohm
    Power metering range: 0 ~ 299.999 W                   Resolution precision: 0.001 W
    Timing maximum time: 999 H 59 M 59 S                Resolution precision: 1 S
    Time to refresh: > 500 ms/time > 500 ms/times
    Measurement rate: 0.5 times/s
    Use large equipment of the same metal manganese bronze sampling resistor
     (1.0 mm diameter metal manganese bronze material < 0.05R)
    Product size: 65 x 24 x 14 mm
    Since the power flow: < 0.003 A          <  3mA
    Working temperature:  - 10 ~ + 60 ℃
    Working humidity: 10 ~ 80 (no doubt)
    The pressure of work: 80 ~ 106 kpa

    Cumulative capacity range: 0-99999 mah precision: 0.001 Ah (New features or D+ D-    Voltage )

    Specifications:
    Item size:65 * 24 * 14 mm
    Net weight: 19g
    Package weight: 28g
    Color: Black
    Display Color: IPS color

    Packing content:
    1 x Digital USB Voltmeter Tester

    U96 key button operation instructions:

    1. Short Press key button to switch screen

    2. Long press key button the screen to flip

    3. Quickly double-click key button the power Wh to clear zero

    4. Fast three-click capacity mAH to clear zero

    5. Fast four-click time to clear zero

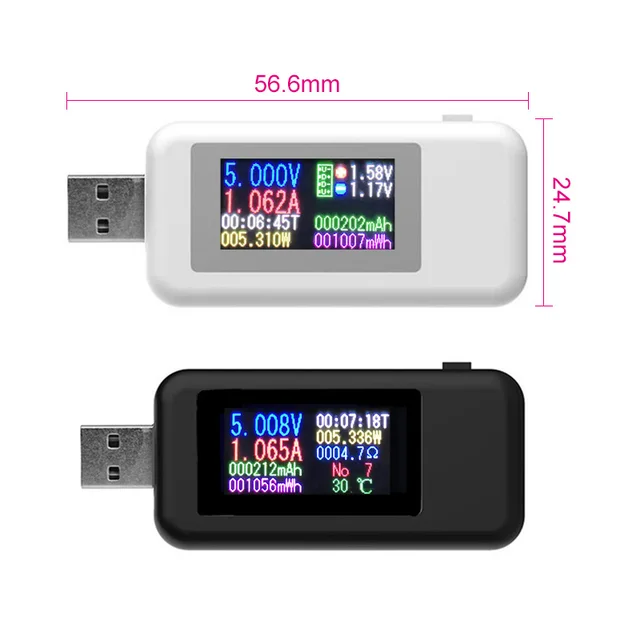

    1

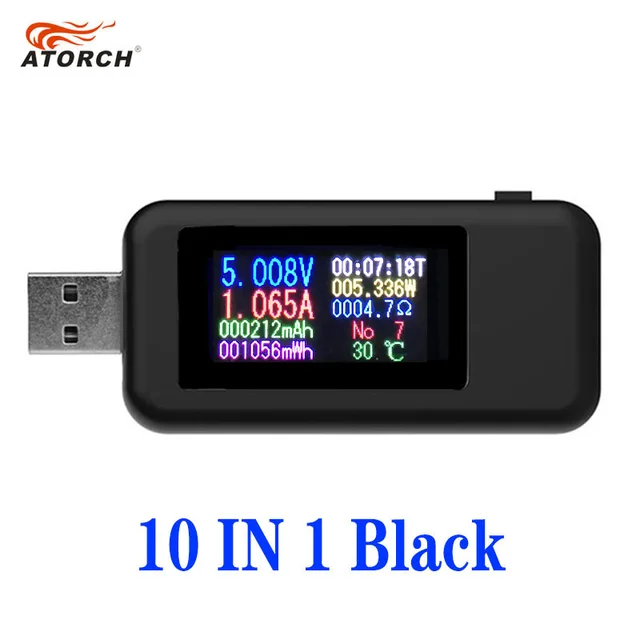

    1pcs Black usb tester

    2

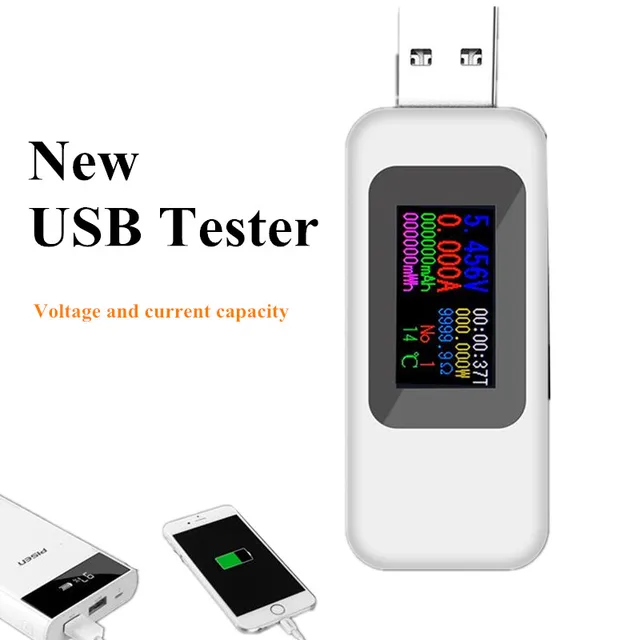

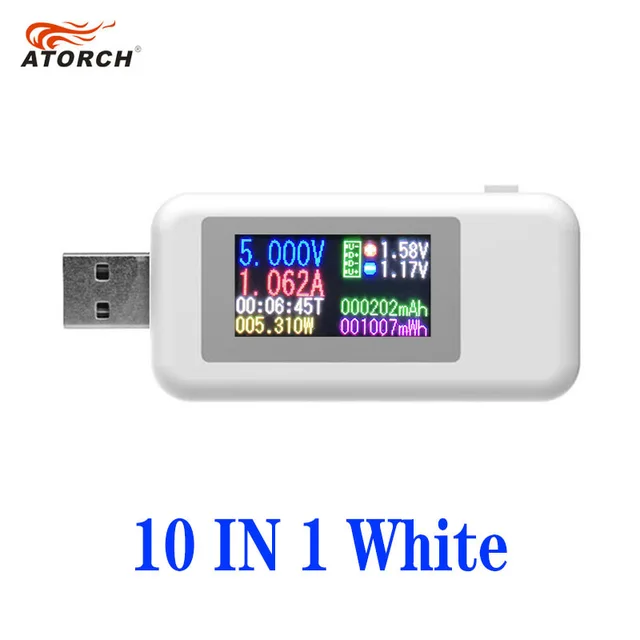

    1pcs White usb tester





    Product introduction:

    1. Current: 0-5A 2. Voltage: 4-30V

    3. Timing: 0-99 hours 4. Power : 0-150W
    5. Capacity: 0-999999mAh
     6. Inner temperature: 0-80 C

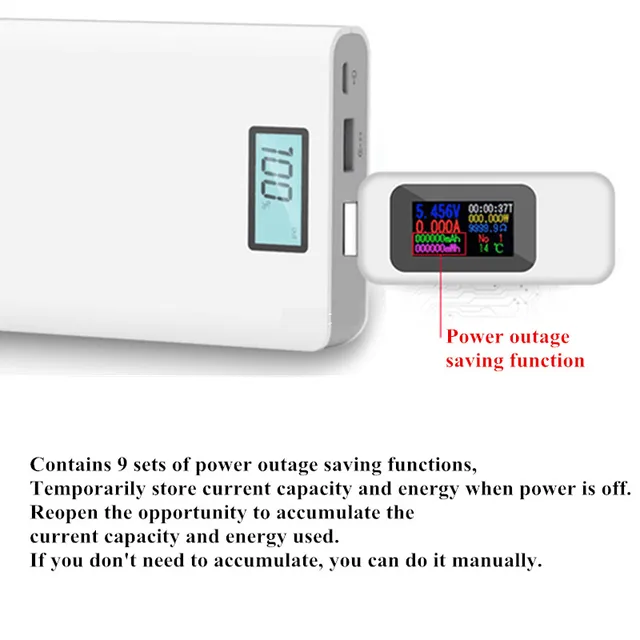

    7. Divide into groups: 0-9 group
    8.Electricity:0-999999mAh
    9.Charging resistance:0-999.9 Ω
    ​10.Positive voltage:0-10V
    11.Negative voltage:0-10V
    Directions for use
    1: Click the button to view 1-9 sets of charging data.
    2: Long press the button for 3 seconds to remove a set of
    charging data.
    3: Double-click the button to rotate the screen to view.

    2

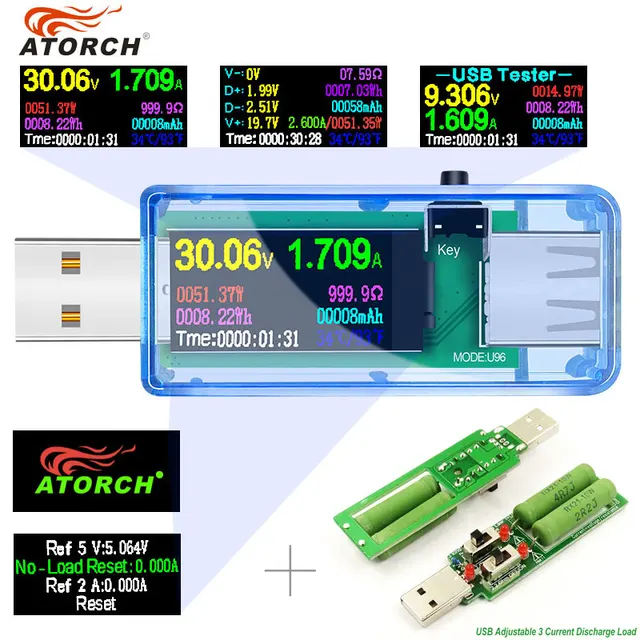

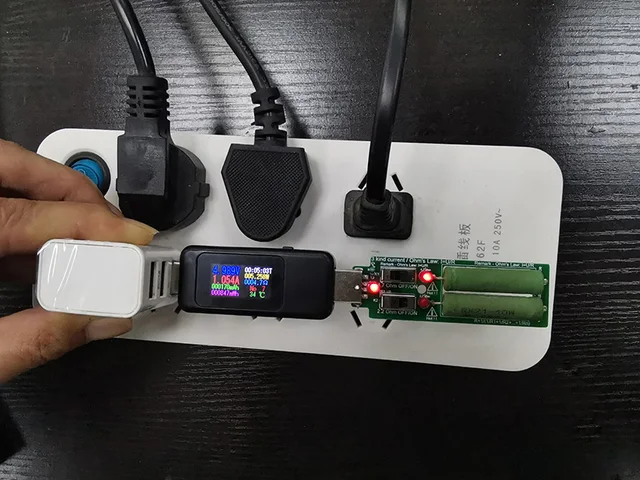

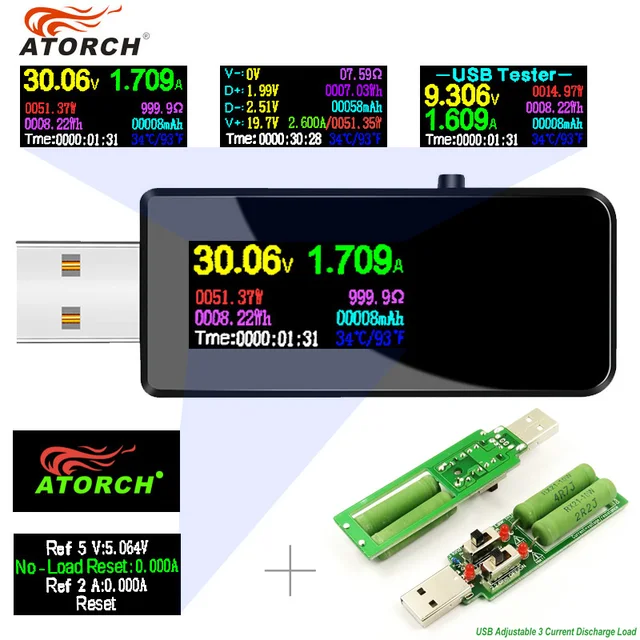

    1pcs usb tester + 1pcs usb load

    3

    4567

    H0b76a39373e34482a4b9239ca55ca6d1o

    IMG_20190327_082454

    IMG_20190327_082443

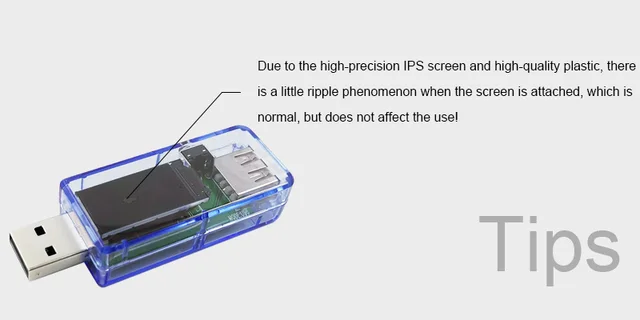

    TIPS

    FAQ:

    1.U96 has the function of calibration?

    A:yes!



    Product Details
    Digital Voltmeter Ammeter-Detector Charger-Indicator Usb-Tester Power-Bank Current Amperimetro

    Clearance Sale. Closeout Deals

    € 3,98 - 4,25
    4.9
    (based on 4194 user reviews)
    Producer: MaJack
    Identifier: 32995519722
    Volume Retail Sales: MaJack piece
    Availability: 300 pieces
    Last Update : Tue, 01 Dec 2020
